Personalized 3D prints that sell are not the same as prints that look busy in a feed. Four families carry the category: name-on-plastic sold cheap and fast, photo lamps, painted photo figurines, and occupation desk plates. Which one ranks in a given week moves. The model contract behind each family does not, and that contract is what this article is for.

What you will learn: which personalized SKUs actually move; what the buyer types; what has to live in the Rig Cad tree so a long name, a thin stroke, or a ring hole cannot silently fail; and which article in this series to open next.

This is a shop map, not a ranking. Parametric Goods: From Customer Choice to Printable Product is the fulfillment path once a family is chosen.

Table: The four families, what the buyer customizes, and what sets the price.

Two things stay true whatever the current prices are. Perceived gift value sets the ceiling, not grams: the same twenty grams of PLA is a party-favor tag or a graduation gift depending on the occasion the listing names, and the occasion is worth more than the plastic. And per-order labour barely changes between the cheapest tag and the most expensive plate, so it eats the cheap lane first. Pricing Customized 3D Prints turns that into an actual quote.

Pencil toppers ride the same back-to-school window as the cheap tags. Flexi animals still move the most units, but they are barely personalized and look like the same free file everywhere.

The listing field is a variable. Everything that must survive a long name, a thin glyph, or a 4 mm ring is derived or validated from that variable.

Table: Each selling family, the inputs, and the next article.

A starting band for FDM PLA on a 0.4 mm nozzle: 12 characters, three tested fonts, raised stroke at least 0.8 mm, web at least 1.6 mm around a 4 mm ring hole. Other nozzles need their own band.

The customer never opens Rig Cad. They type in the listing or in a configurator. You keep one project per family.

• text is the listing field. It is a string, not a mesh you rebuild by hand.
• font is a production dependency. Pin the file. Do not let a missing glyph fall back in silence.
• tag_width follows the measured text, or it is clamped so III and WWW both sit on a plate that still has a web.
• The ring is a cylinder subtracted from the plate. cutterDepth is derived from thickness so a thicker tag stays a through-hole; Oversize the Cutter is that rule.
• Two colors are two solids, not a texture. Primary and secondary filament are the listing dropdowns.

Check the font licence before a listing goes up. A font is licensed, not bought, and the licence attached to a free download is very often free for personal use only, which does not cover selling what you make with it. Selling printed text normally needs a licence that permits commercial use of the output, and some foundries treat converting glyph outlines into exported geometry as embedding, which is a separate grant again. The check is per font, not per shop: open the licence that shipped with the file, confirm in writing that commercial products are allowed, store that licence next to the pinned font file, and record which font each listing uses. Three fonts you have checked are worth more than twenty you have not. If a licence is missing or unclear, treat the font as unusable for sale rather than guessing.

Text as Geometry is the treatment table (raised, recessed, cut-through). Beyond Sliders is the safe region when length, hole, and web fight each other.

The generator below is the same recipe with the variables exposed. Type a name. Width, hole, and thickness stay on the tree.

These four projects are the shop's current tag and plate family. The silhouette changes. The contract does not: a string, a font, a hole or a stand, two colors.

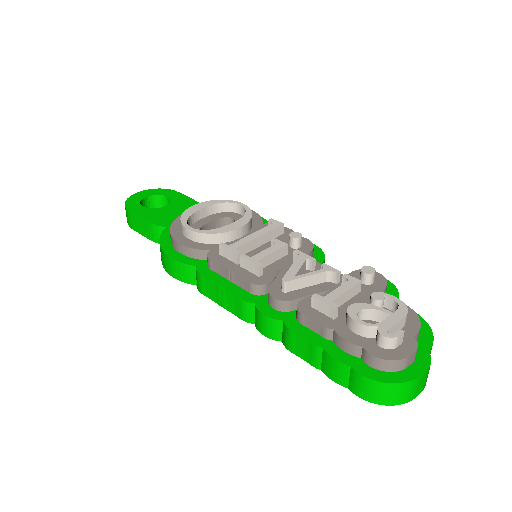

A chunky bag tag, a script tag, a rounded keychain, and a sweeping desk plate. Use them as the listing photos' live twins. A buyer who types Olivia here should get the same geometry you will print.

Two of the four families are driven by an image, not a string. The contract changes: the buyer sends a file instead of typing, the tree turns brightness into thickness instead of glyphs into solids, and the order record has to carry the photo and the permission to use it.

Photo lamps and lithophanes. The image becomes a thickness field. Dark pixels are thick and block light; bright pixels are thin and pass it. Four things decide whether the print reads as a picture.

• The thickness band. A minimum that still prints as a continuous wall, and a maximum that still passes light in the darkest area. The whole image maps into that band, so the band is the contrast range of the finished object. Too wide and the highlights become holes; too narrow and the panel is uniformly grey.
• Layer height against pixel pitch. Detail across the face is limited by the nozzle, detail through the face by the layer height. An image carrying more detail than either can resolve prints as mush, so downsample the photo to what the process actually holds.
• Contrast and crop before geometry. A lithophane inherits every failure in the source photo. A backlit or low-contrast original is not rescued by the model. Crop to the face and fix the contrast before importing, not after a four-hour print.
• The light source. Thickness is calibrated against one backlight. An LED base and a window are not the same test, and a panel tuned for one looks wrong on the other.

In Rig Cad the Color Lithophane node builds this directly from an image, assigning printable layers to filaments by transmission distance. Heightmap Warp is a different job: it displaces geometry you already have, which is how a relief or a texture goes onto a curved base, not how a backlit panel is built. Pick by which one you are making.

Photo figurines. Nothing from the tag tree transfers, and no parameter produces a likeness. This is a sculpt-and-paint operation, and three constraints decide it before you quote one. The face carries the entire perceived value, so the detail scale on the head sets the product and everything below the collar can be coarse. A face printed under supports is ruined by the scars, so orientation and split lines are chosen for the face first and for print time second. Paint access is a geometry decision, so split at the neck, the waist, or behind the limbs to keep the painted surfaces reachable before assembly. If you do not already sculpt and paint, this lane is a hiring decision rather than a modeling one.

For both, the photo is production data. The file, the crop, and the customer's confirmation that the image may be used belong in the order record alongside the project revision. Versioned Production is where that record lives.

• Generic flexi dragons and animal multipacks. Same STL, same photos, AliExpress twins.
• The bottom of the name-keychain band. If the price does not clear machine time plus the per-order labour, volume makes the loss bigger, not smaller.
• Gold-acrylic wedding toppers. That category's money is wood and acrylic, not FDM.
• Unlicensed Disney, Marvel, or D&D marks in the title. Etsy's creativity rules and takedowns both apply.
• Fonts whose licence you have not read. Free for personal use is the trap, and it is the likeliest legal exposure in a text-driven shop.
• Unmodified free files listed as original work.

Photo figurines sell. They are a sculpt-and-paint shop, not a second slider on the tag project.

Seasonal demand is a lead-time problem, not a calendar reminder. A seasonal SKU needs to be live roughly six to eight weeks before its buying window opens, and closer to three months for the winter holidays. The listing needs that time to collect views, reviews, and search history before the traffic arrives; a family listed inside its own window is competing against shops that listed it a season earlier. Work backwards from the window, not forwards from today.

Table: The recurring windows and what belongs in each. Subtract the lead time to get the listing date.

The winter holiday lane is the one a new shop misses, because its listing date falls in late summer while nothing about the season is visible yet.

Putting the year in an ornament title is enough seasonality for that family. It makes the object dateable as a keepsake, and it retires the listing honestly when the year turns.

Pick one family and keep the others off the first listing.

Parametric Goods: From Customer Choice to Printable Product is how an order becomes a file. Text as Geometry is the tag and plate work. Pricing Customized 3D Prints is the quote; labour dominates a cheap tag, so price the set, not the single. When the buyer should type the name themselves instead of sending it in a message, Publishing a Configurator is how the tag project becomes a shareable page with only text, font, and the colors exposed.

If a photo lane is where you are heading, the design constraints are in the section above, and Versioned Production is where the photo, the crop, and the customer's permission belong as the production record.
